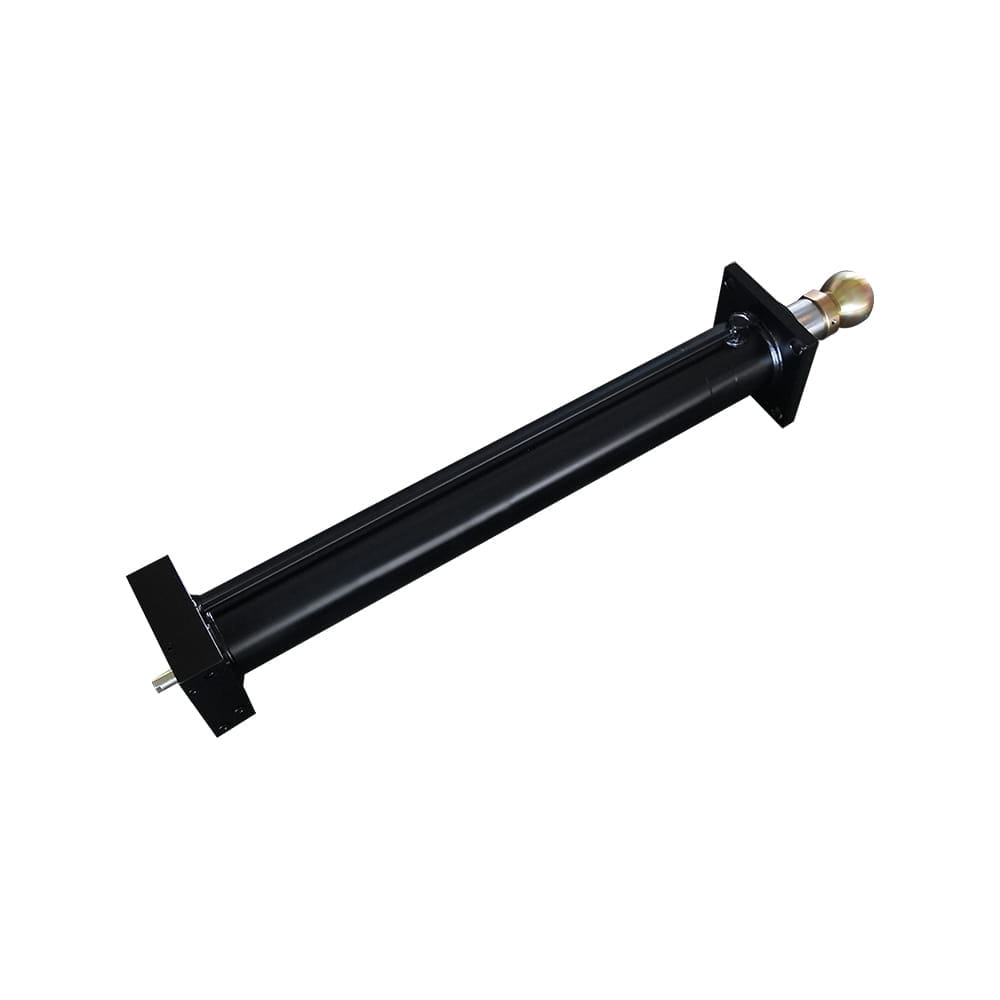

What are the primary factors influencing the efficiency and pressure losses in high-pressure hydraulic cylinders?

The efficiency and pressure losses in high-pressure hydraulic cylinders are influenced by several key factors related to fluid dynamics, mechanical design, material selection, and operating conditions. Below is a detailed breakdown:

1. Fluid Dynamics & Flow Resistance

• Viscosity of Hydraulic Fluid:

  • High-viscosity fluids generate more internal friction, increasing pressure losses and energy consumption.

  • Low-viscosity fluids may cause leakage past seals, reducing efficiency.

• Flow Rate & Turbulence:

  • Excessively high flow rates can create turbulent flow, leading to increased pressure losses.

  • Laminar flow ensures smoother operation and minimal pressure drop.

• Internal Leakage (Slip Flow):

  • Worn-out seals, improperly machined components, or high-clearance tolerances can cause fluid leakage, reducing volumetric efficiency.

2. Mechanical Design & Structural Efficiency

• Seal Friction & Drag:

  • Poorly designed or overly tight seals create excessive friction, leading to energy loss.

  • Low-friction seals improve efficiency while maintaining pressure integrity.

• Piston & Rod Alignment:

  • Misalignment increases side loads, leading to wear, friction, and reduced mechanical efficiency.

• Cylinder Bore Surface Finish:

  • Rough surfaces increase friction and wear, while excessively smooth surfaces may prevent proper lubrication retention.

3. Pressure Losses & Energy Dissipation

• Pressure Drops in Ports & Passages:

  • Narrow or poorly designed hydraulic passages increase resistance and lead to pressure losses.

• Valve & Fitting Restrictions:

  • Incorrectly sized control valves, check valves, and fittings can cause localized pressure losses.

• Hose & Piping Losses:

  • Long hoses or undersized piping increase resistance and reduce overall system efficiency.

4. Thermal Effects & Fluid Contamination

• Heat Generation & Thermal Expansion:

  • Excessive heat buildup from inefficiencies can change the viscosity of hydraulic fluid, impacting performance.

• Contaminants & Particulates:

  • Dirt, metal particles, and water contamination increase wear on components, affecting sealing performance and leading to internal losses.

• Aeration & Cavitation:

  • Entrained air or vapor bubbles reduce pressure transfer efficiency and can cause damage to cylinder components.

5. External Load & Operating Conditions

• Dynamic vs. Static Load Conditions:

  • Rapid acceleration and deceleration can cause pressure spikes, reducing efficiency.

• Side Loads & Off-Axis Forces:

  • External forces misaligned with the cylinder’s axis create uneven wear and increased resistance.

• Back Pressure from Return Lines:

  • If the return line is restricted, pressure losses increase, reducing the net force available for actuation.

Ways to Improve Efficiency & Reduce Pressure Losses

• Optimize hydraulic fluid selection for the operating temperature and pressure range.

• Use low-friction seals and precision-machined components to minimize internal losses.

• Ensure proper alignment of the piston rod and load to reduce side forces.

• Design efficient flow paths with minimal restrictions and turbulence.

• Implement advanced filtration systems to prevent contamination-related losses.

• Regularly inspect and maintain components to prevent excessive wear and leaks.
