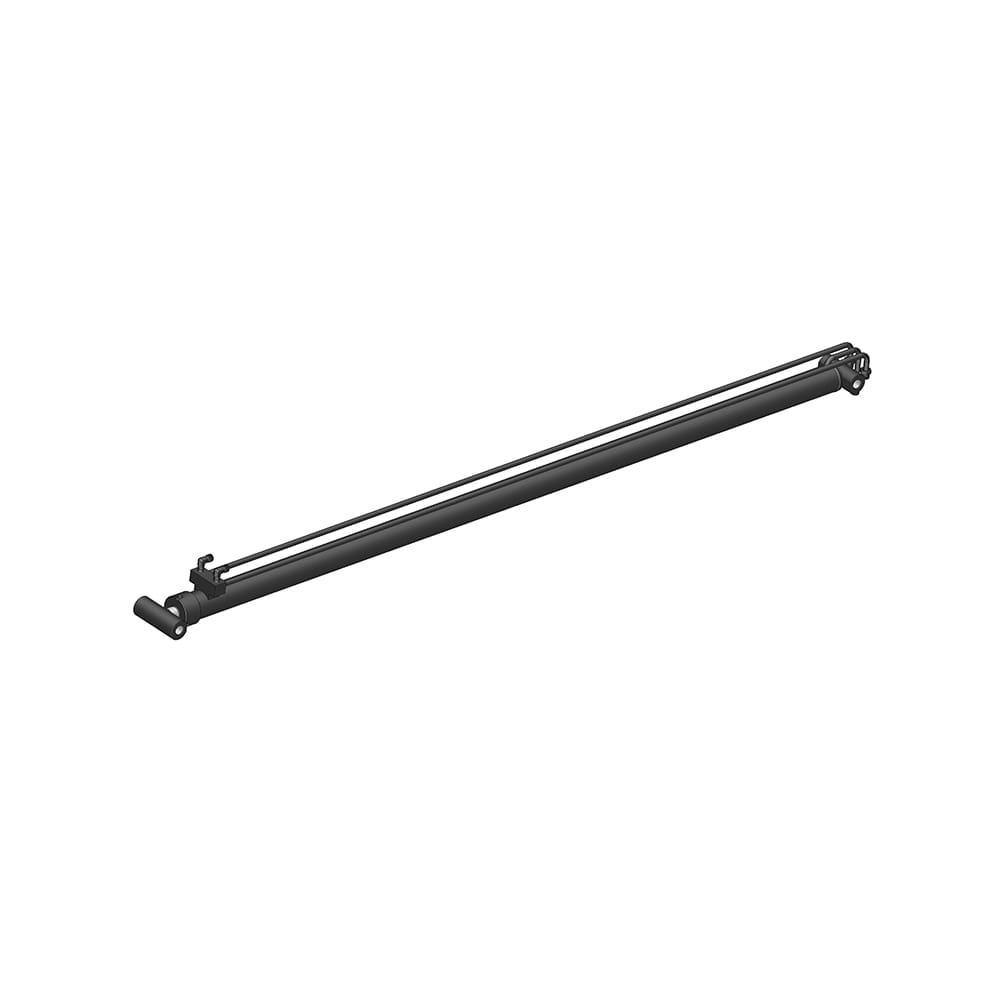

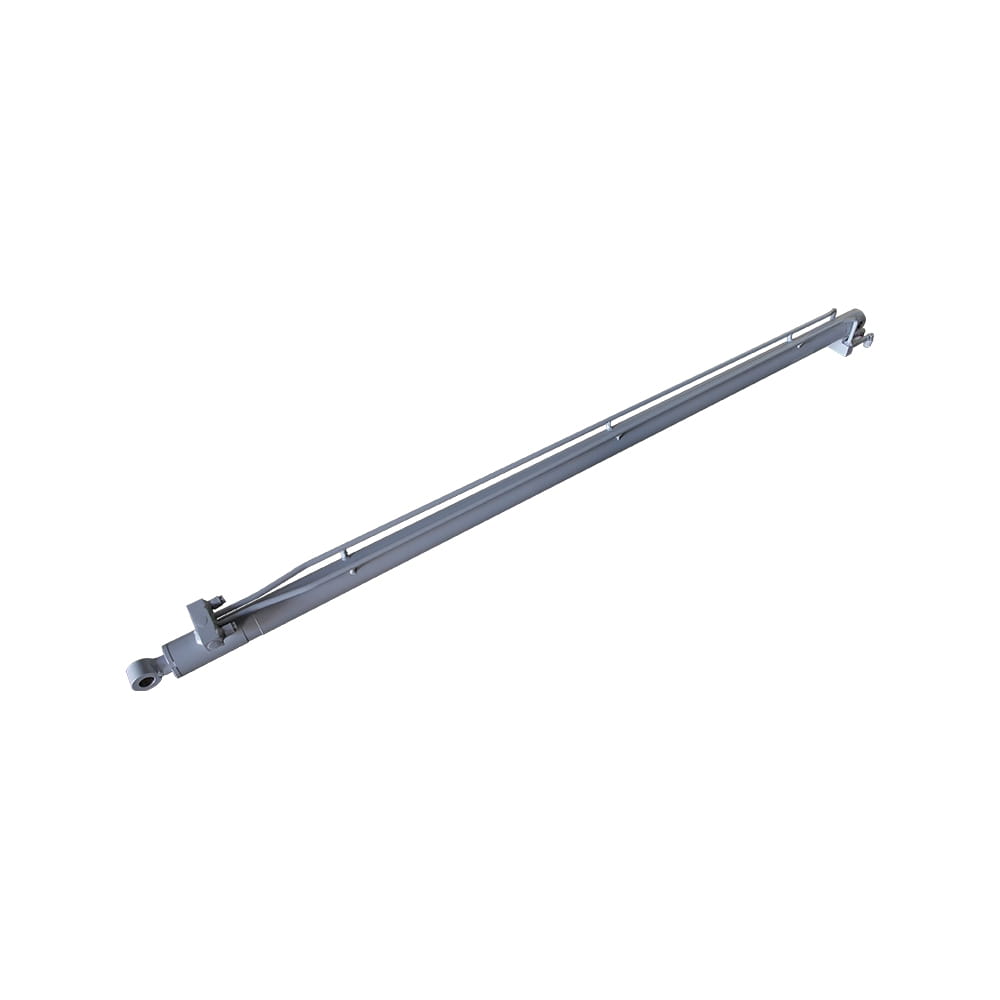

Truck-Mounted Crane Hydraulic Horizontal Cylinder

Function: Adjusting Outrigger Span: During lifting operations, the stability of the vehicle and lifting equipment is essential. The horizontal cylinder adjusts the span between outriggers through its telescoping movement to accommodate different ground conditions and operational needs. By precisely adjusting the outrigger span, the crane’s balance is maintained, preventing tipping incidents.

Product Advantages and Additional Features:

Multi-Stage Telescopic Cylinder: When greater stroke length is needed, a multi-stage horizontal cylinder can provide an extended outrigger span, meeting specific operational requirements.

Cylinder diameter

 Φ50mm-Φ70mm

Rod diameter

 Φ28mm-Φ50mm

Stroke

 500mm-3000mm

Working pressure

 31.5MPa

Connection form

 Hinge shaft
