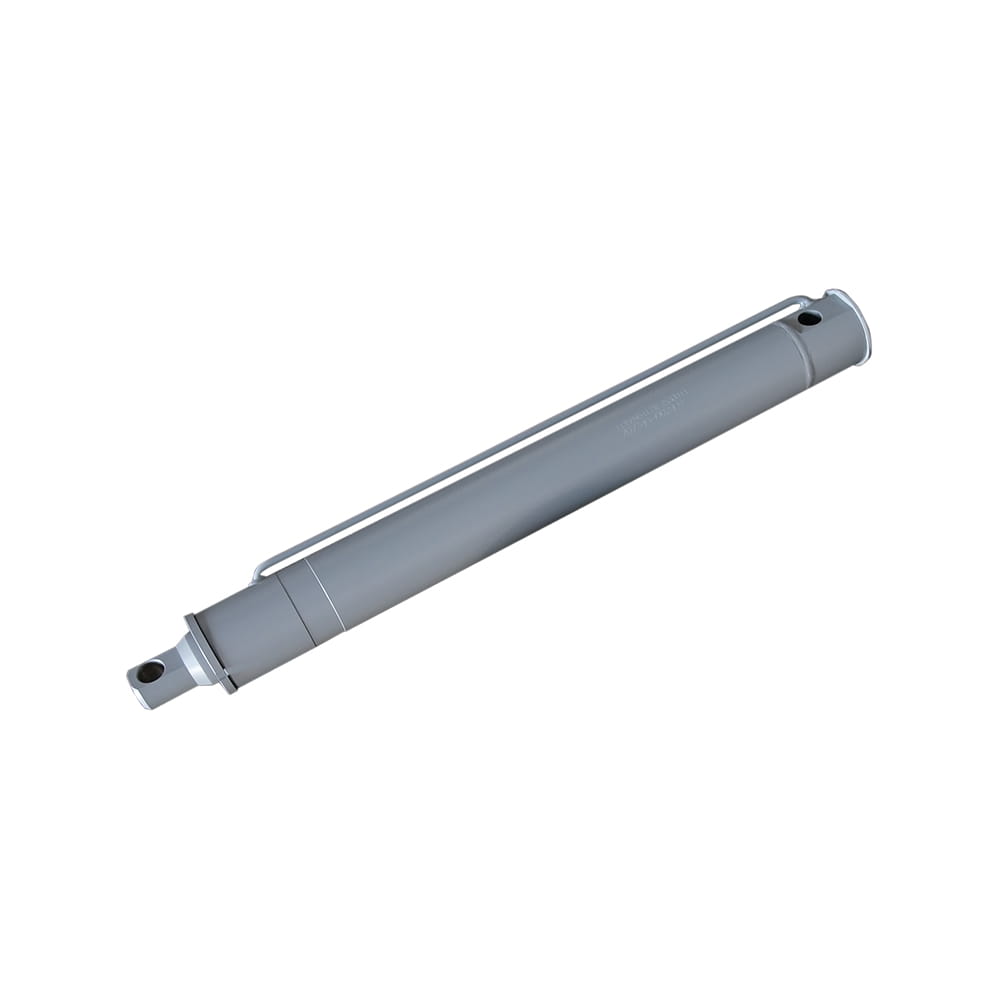

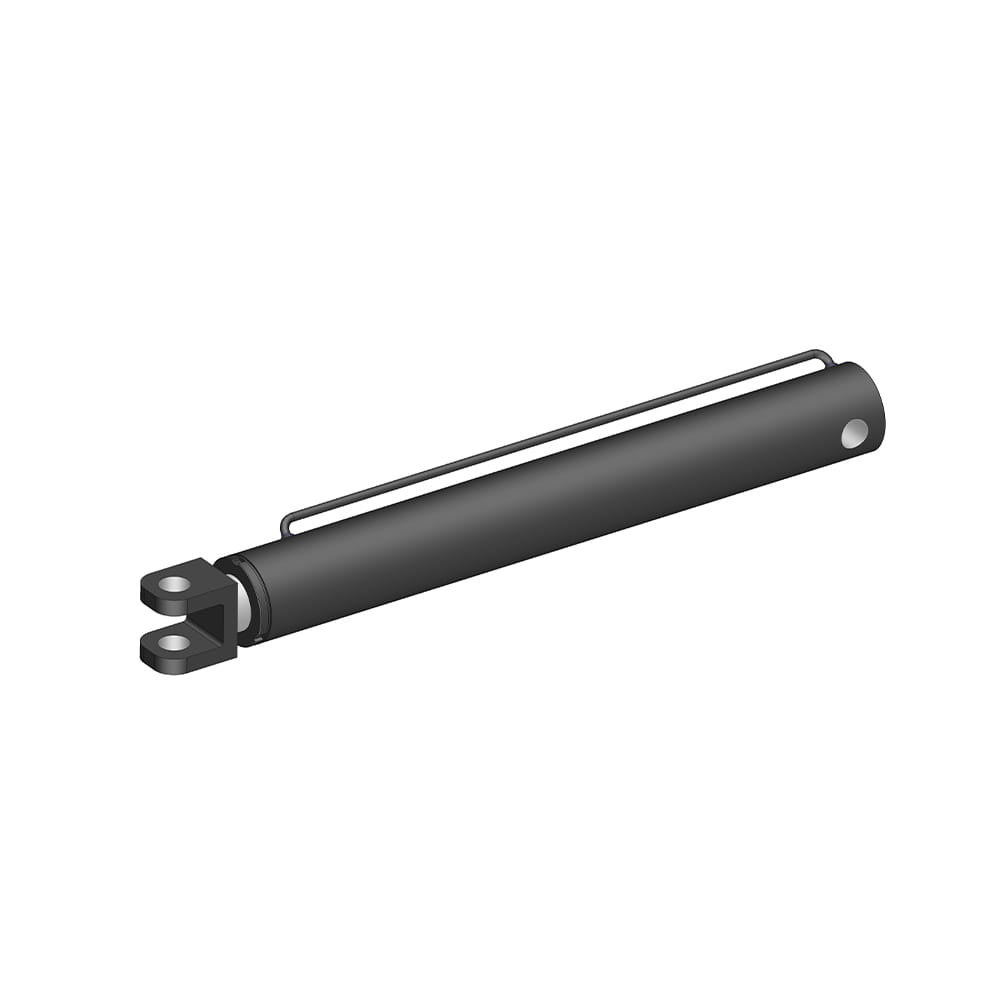

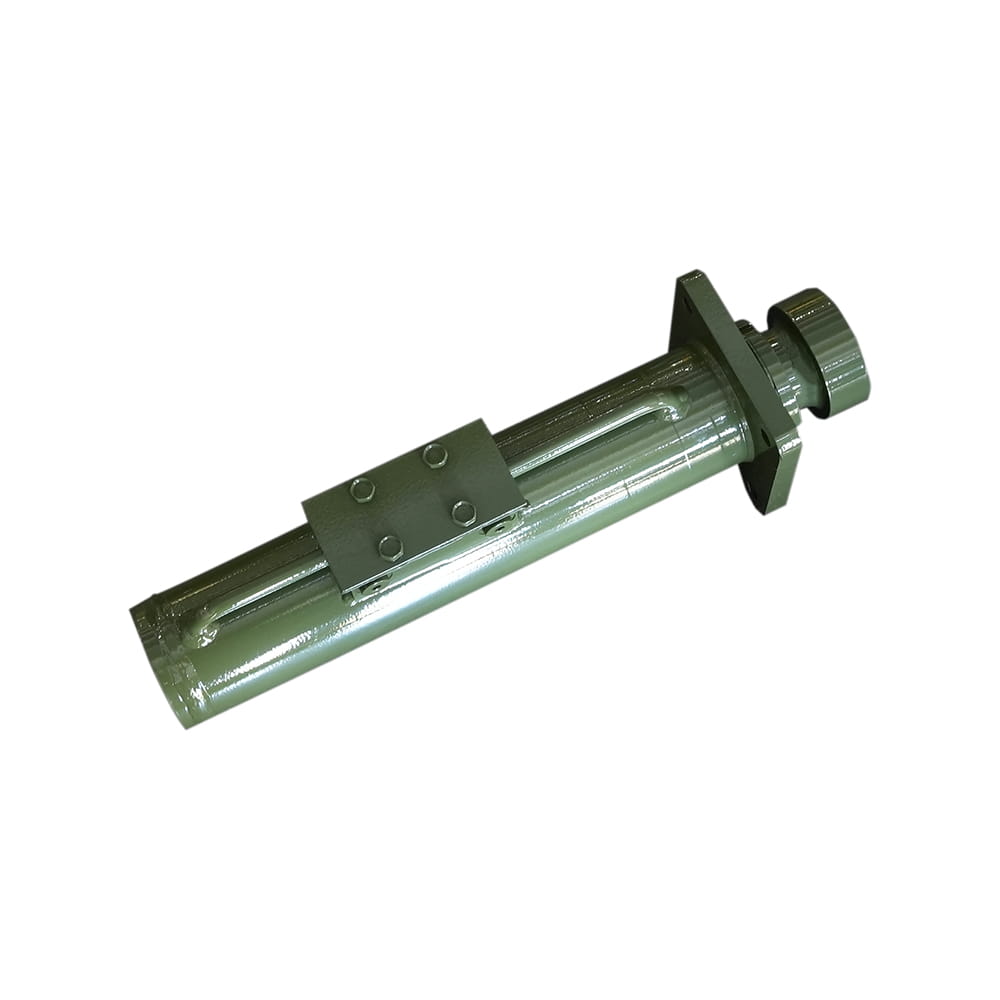

1. Function: Supporting the Crane: The outrigger cylinder, through its extension and retraction, raises and lowers the truck-mounted crane’s outriggers, increasing the support area. This improves stability during operations, preventing vehicle tipping due to heavy loads or uneven terrain. When the outrigger cylinder extends to the ground, it effectively distributes the crane’s weight, ensuring balance and stability.
2. Product Advantages and Additional Features:
Sensor-Integrated Cylinder for Outrigger Retraction Detection: To enhance safety and reliability, sensors can be integrated into the outrigger cylinders to detect any retraction during operation. These sensors provide real-time monitoring of outrigger status, alerting operators if retraction is detected or taking other measures, such as halting operations or adjusting cylinder pressure, to prevent accidents due to outrigger instability.
Cylinder diameter |
Φ50mm-Φ200mm |
Rod diameter |
Φ28mm-Φ140mm |
Stroke |
200mm-1500mm |
Working pressure |
31.5MPa |
Connection form |
Hinge shaft, flange |
